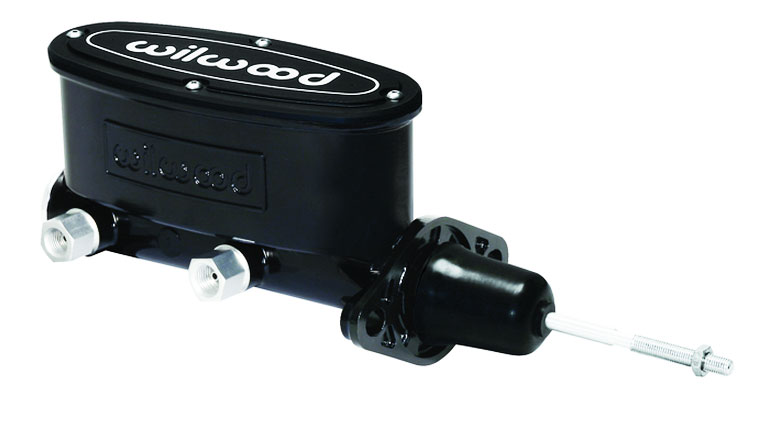

Wilwood’s Tandem Aluminum Master Cylinder is available in 4 bore sizes 7/8″, 15/16″, 1” and 1-1/8” and two finishes, Polished or Gloss Black
7/8” and 15/16″ bore master cylinders are designed primarily for manual applications and include a pushrod
The 1” and 1-1/8″ bore is primarily used in power assisted applications and does not come with a pushrod.
Overall length of 8.15″ and slotted mount flanges from 3.22” to 3.40”
Fluid outlet ports on both sides of the bore
Stroke is set at 1.10” with a volume ratio of 2:1 between the primary and secondary chambers.
We also offer Wilwood’s combination proportioning valve kit, which includes brackets and stainless lines specifically for use with these master cylinders, see Proportioning Valves WILWOOD COMBINATION PROPORTIONING VALVE and select Option1:HIGH VOLUME (OVAL TOP) ONLY
